Manufacturing KPI dashboards transform raw production data into actionable insight. The right dashboard pulls metrics from your MES, ERP, and IoT sensors into a single visual layer so plant managers can spot bottlenecks in seconds rather than hours. According to the Lean Enterprise Institute, facilities running real-time KPI visualization reduce average decision latency by 62% compared to weekly spreadsheet reviews.

Below are ten proven manufacturing KPI dashboard examples used on shop floors across automotive, food & beverage, aerospace, and industrial equipment plants. Each one targets a specific operational problem, and each includes the critical metrics that belong on it. Whether you are building your first dashboard or rebuilding a legacy BI stack, these examples give you a starting framework grounded in widely adopted standards like ISO 22400 and the manufacturing practices promoted by the Society of Manufacturing Engineers.

1. OEE Dashboard — The Core Production Efficiency View

The Overall Equipment Effectiveness dashboard remains the single most widely deployed manufacturing KPI view. According to the Society of Manufacturing Engineers, world-class OEE sits at 85% or higher, while the average discrete manufacturing plant scores between 60% and 65%. The dashboard breaks OEE into its three pillars: availability, performance, and quality.

A strong OEE dashboard displays:

Real-time OEE percentage for each line or cell, updated every 60 seconds
Pareto chart of downtime reasons — unplanned stops, changeovers, minor stoppages
Scrap and rework trend tied directly to the quality factor
Target vs actual cycle time in seconds per unit

Research published in the International Journal of Lean Six Sigma found that plants monitoring OEE on shop-floor screens improved uptime by 17% within six months. Priced between $2,500 and $15,000 per line depending on the visualization platform, OEE dashboards typically pay back within 90 days through reduced unplanned downtime alone.

Ad Zone — Between Sections

2. Production Schedule Adherence Dashboard

Schedule adherence tells you whether the plant is actually building what the ERP promised to ship. According to the American Production and Inventory Control Society, manufacturers with schedule adherence above 95% achieve 23% higher on-time delivery rates than those hovering at 80%.

This dashboard typically shows planned versus actual output per shift, delta in units, and a rolling 7-day adherence percentage. Color-coded heat maps highlight shifts that slipped, and drill-downs expose the specific work centers or operators behind the variance. A well-designed adherence dashboard pulls directly from your MES and reconciles against ERP work orders every 15 minutes.

Key metrics to include:

Adherence to plan (%), target: 95% minimum
Attainment to demand (units shipped vs units ordered)
Backlog aging in hours
Forecast accuracy overlaid for context

Food and beverage producers cite this dashboard as their most valuable tool for managing tight shelf-life windows, where a two-hour slippage can push product into expedited freight at triple the cost.

3. Quality & First Pass Yield Dashboard

Enjoying this article?

Get articles like this in your inbox every week.

Quality dashboards protect margin. According to ASQ, the average cost of poor quality in discrete manufacturing runs between 15% and 25% of total revenue, meaning a $50 million plant bleeds roughly $10 million annually on defects, rework, and warranty claims. A First Pass Yield (FPY) dashboard makes that loss visible.

The centerpiece is the FPY percentage — units passing all inspection stages on the first attempt, without rework. World-class plants hit 99% FPY on mature product lines. Alongside it, display defects per million opportunities (DPMO), top 5 defect codes, and a scrap cost ticker showing dollars lost this shift.

Supplementary widgets that boost adoption include SPC control charts for critical dimensions, cost of quality broken into prevention, appraisal, and failure categories, and a supplier quality scorecard. Plants implementing FPY dashboards alongside Six Sigma programs typically reduce DPMO by 40% within the first year, according to iSixSigma case studies.

Ad Zone — Between Sections

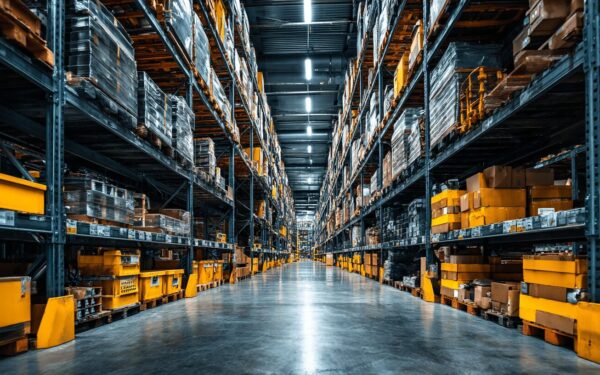

4. Inventory & Raw Material Dashboard

An inventory dashboard prevents the two most expensive mistakes in manufacturing: running out of critical components and sitting on millions in excess stock. According to APICS research, manufacturers carrying inventory turns below 8 tie up 31% more working capital than peers operating at 12+ turns.

The core metrics on this dashboard:

Days of inventory on hand by SKU category (raw, WIP, finished)
Stockout risk alerts for items with lead time greater than reorder window
Excess and obsolete inventory value — anything not moved in 90+ days
Inventory turns rolling 12 months
Cycle count accuracy, target 98%+

Aerospace and automotive suppliers typically add a supplier on-time delivery widget so procurement can react before a shortage halts a line. A single averted line-down event can save $40,000 to $120,000 depending on downstream customer penalties.

5. Shop Floor Safety & EHS Dashboard

Safety dashboards are no longer optional. According to the U.S. Bureau of Labor Statistics, the manufacturing sector records roughly 3.1 recordable injuries per 100 full-time workers annually. A well-designed EHS dashboard drives that number down by making leading indicators visible daily, not quarterly.

Track days since last recordable injury, near-miss reports submitted this week, safety observations completed, and open corrective actions by due date. The most effective dashboards add a heat map of incident locations overlaid on the plant floor layout so patterns jump out.

Leading versus lagging indicators should be clearly separated: training completion rates, toolbox talks held, and audit findings closed on time are leading. Recordable incidents, lost-time injuries, and DART rates are lagging. Research from the Campbell Institute shows plants weighting leading indicators at 70% of their safety scorecard reduce recordable rates by 50% within three years.

Ad Zone — Between Sections

6. Energy & Sustainability Dashboard

Energy now runs between 3% and 15% of cost of goods sold for most U.S. manufacturers, according to the U.S. Department of Energy. An energy dashboard pays for itself by exposing the invisible load: compressed air leaks, idle equipment, and HVAC drift.

Core widgets include kWh per unit produced (a true normalized efficiency metric), real-time demand charge alerts when peak power approaches the utility threshold, water usage per shift, and scope 1 and 2 CO2 emissions. Plants reporting to CDP or pursuing ISO 50001 certification need this dashboard as documentation for external auditors.

According to the U.S. EPA Lean & Environment Toolkit, manufacturers implementing energy dashboards alongside a structured treasure-hunt program identify an average of 8% to 12% in annual energy cost reductions. For a plant with a $3 million electric bill, that is $240,000 to $360,000 recovered every year.

7. Maintenance & Reliability (MTBF/MTTR) Dashboard

A maintenance dashboard tells reliability engineers exactly where to spend their next hour. Mean Time Between Failures (MTBF) and Mean Time To Repair (MTTR) are the two foundational metrics, and the Society for Maintenance & Reliability Professionals (SMRP) publishes benchmark values by industry.

Essential widgets:

MTBF by asset class, rolling 90 days
MTTR trend with breakdown of diagnose-fix-test time
Planned vs reactive maintenance ratio, target 80:20 or better
PM compliance — preventive work orders closed on schedule
Spare parts availability for critical equipment

Plants shifting from reactive to predictive maintenance using IoT vibration and thermal sensors typically report 20% to 30% reductions in unplanned downtime within 18 months. The capital cost of sensor packages averages $800 to $2,500 per critical asset, with payback under 12 months on high-value production equipment.

Ad Zone — Between Sections

8. Labor Productivity & Operator Dashboard

Labor productivity dashboards have evolved from blunt output-per-hour counters into nuanced tools that respect the human behind the machine. According to McKinsey, manufacturers using transparent, operator-facing dashboards see 14% higher productivity and 22% higher worker retention than those using top-down KPIs only.

Effective operator dashboards show current cycle time against target, personal quality score for the shift, a skills matrix showing cross-training progress, and recognition widgets highlighting kaizen suggestions submitted. Critically, they avoid individual ranking or public shaming, which SMRP research links directly to turnover spikes.

At the supervisor level, add labor efficiency variance (earned hours vs actual), overtime percentage, and absenteeism trends. Pair this dashboard with a standardized daily huddle format and plants routinely cut labor cost per unit by 8% to 12% in the first year.

9. Supplier & Supply Chain Dashboard

Your plant is only as reliable as its weakest supplier. A supplier KPI dashboard aggregates scorecards across hundreds of vendors into a single risk view. According to Gartner, manufacturers with mature supplier dashboards respond to disruption 3.5 times faster than peers relying on email and spreadsheets.

Must-have metrics include on-time in-full (OTIF) delivery, PPM defect rate from incoming inspection, price variance to PO, and supplier financial risk scores pulled from services like Dun & Bradstreet. Geographic heat maps flag concentrations in high-risk regions for natural disasters, labor disputes, or geopolitical tension.

For strategic suppliers, add a collaborative widget showing shared forecast accuracy and capacity utilization so both parties negotiate from the same data. This transparency typically compresses lead times by 10% to 20% and reduces emergency expedites, which often carry 40% to 60% premiums over standard freight.

Ad Zone — Between Sections

10. Executive Plant Performance Dashboard

The executive dashboard sits above everything else. It answers a single question in under 10 seconds: is the plant winning today? According to research from the Kaizen Institute, executive dashboards with more than 12 KPIs get ignored; the winners show 6 to 8 carefully chosen metrics.

The proven executive layout includes OEE, schedule adherence, safety recordables, FPY, cost per unit, inventory turns, on-time delivery to customer, and an EBITDA-per-labor-hour proxy. Each tile uses red-yellow-green status against monthly targets, with one-click drill-down into the operational dashboards covered above.

Updates run every 15 minutes during production hours, with a daily 6:00 AM snapshot emailed to the leadership team. Plants deploying executive dashboards integrated with their MES and ERP report decision cycle times dropping from weekly to daily, which according to LEI benchmarks correlates with a 2-3 percentage point improvement in EBITDA margin over 24 months.

Frequently Asked Questions

What is the best manufacturing KPI dashboard example for a small plant?

For plants under 100 employees, start with a combined OEE + Quality + Safety dashboard on a single shop-floor screen. This covers the three critical levers without overwhelming operators. Tools like Tulip, MachineMetrics, or a custom Grafana build typically run $500 to $2,000 per month and deploy in under six weeks. Add the inventory and maintenance dashboards once the first one is adopted and trusted.

How much does a manufacturing KPI dashboard cost to build?

Expect $10,000 to $50,000 for a single-plant deployment using platforms like Power BI or Tableau connected to existing MES data, and $75,000 to $250,000 for a multi-plant enterprise rollout with real-time IoT integration. Ongoing licensing runs $25 to $100 per user per month for commercial BI tools. Open-source stacks like Grafana plus TimescaleDB reduce licensing to near zero but require one dedicated engineer for maintenance.

Why is a manufacturing KPI dashboard important?

A KPI dashboard collapses decision time from days to minutes. Without one, managers rely on weekly reports that describe problems already resolved or made worse. According to the Kaizen Institute, plants with real-time dashboards resolve daily production issues 4 times faster than those using traditional reporting, which translates directly into higher throughput and lower cost per unit.

What are the types of manufacturing KPI dashboards?

The main categories are operational (shop floor, shift-level), tactical (plant manager, daily), and strategic (executive, weekly). Within those you layer functional dashboards — OEE, quality, safety, maintenance, inventory, energy, labor, supplier, and executive summary. Best practice is to build bottom-up: start with operational dashboards that operators use, then aggregate upward into tactical and strategic views.

How do I choose the right manufacturing KPI dashboard platform?

Evaluate three dimensions: data connectivity (does it pull from your MES, ERP, and PLCs without heavy custom work?), time-to-insight (can a plant engineer build a new dashboard in under a day?), and total cost of ownership including licenses, infrastructure, and FTEs. Run a 60-day pilot on one line with two candidate platforms before committing. According to SME surveys, plants that pilot before purchase are 2.8 times more likely to achieve full adoption.
